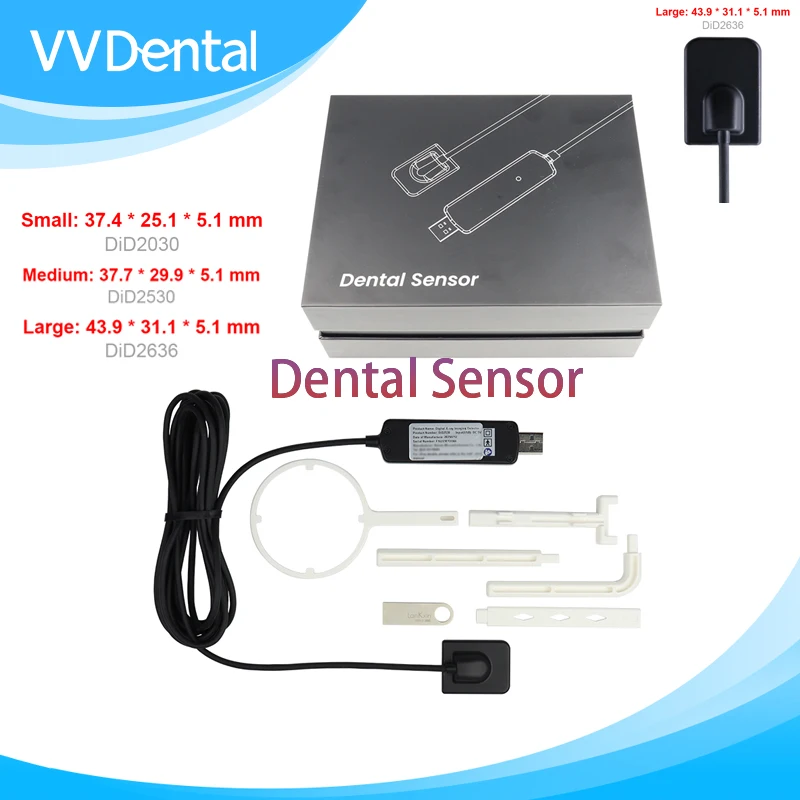

Dental Ruixin Sensor - USB-Connected Digital Imaging System with Installation Package & Tutoria, with a 1 year Warranty

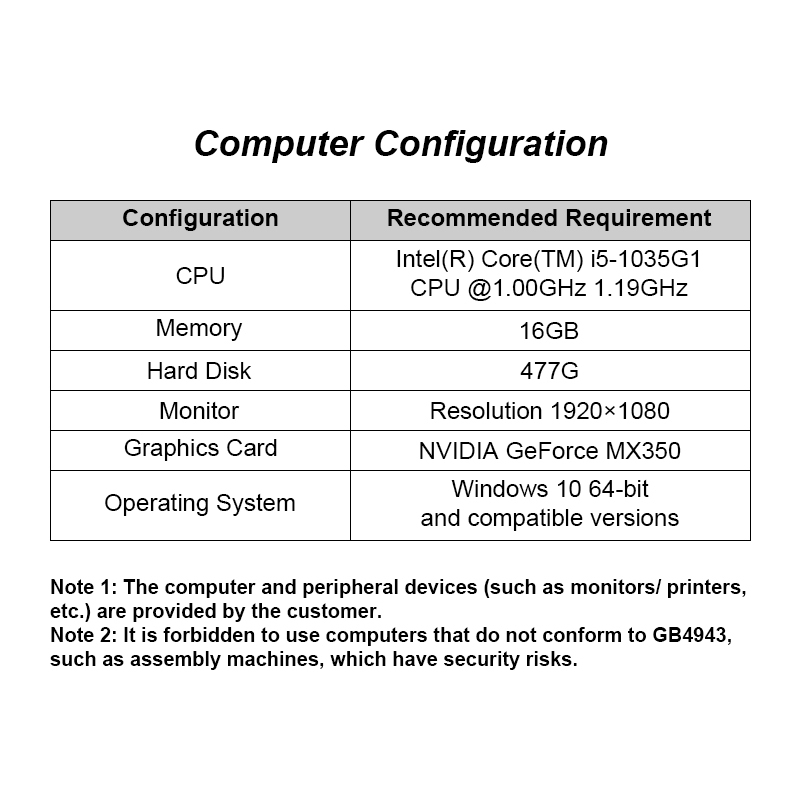

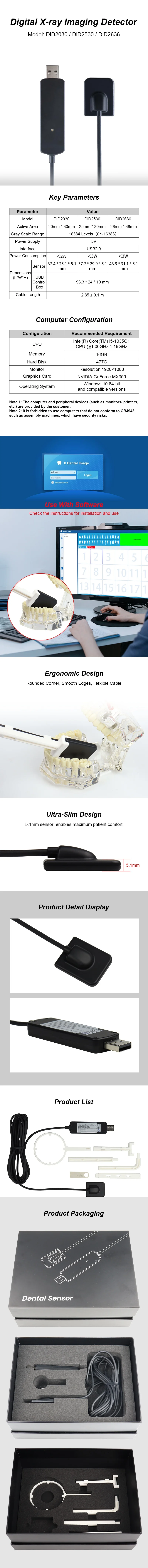

Computer System Requirements - Technical Specifications

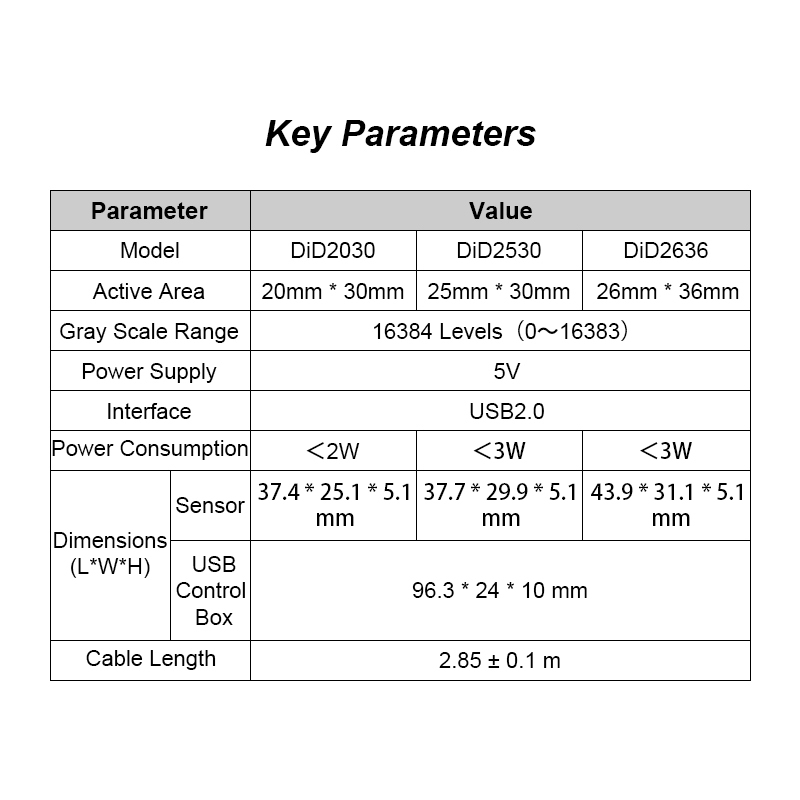

Hardware Configuration

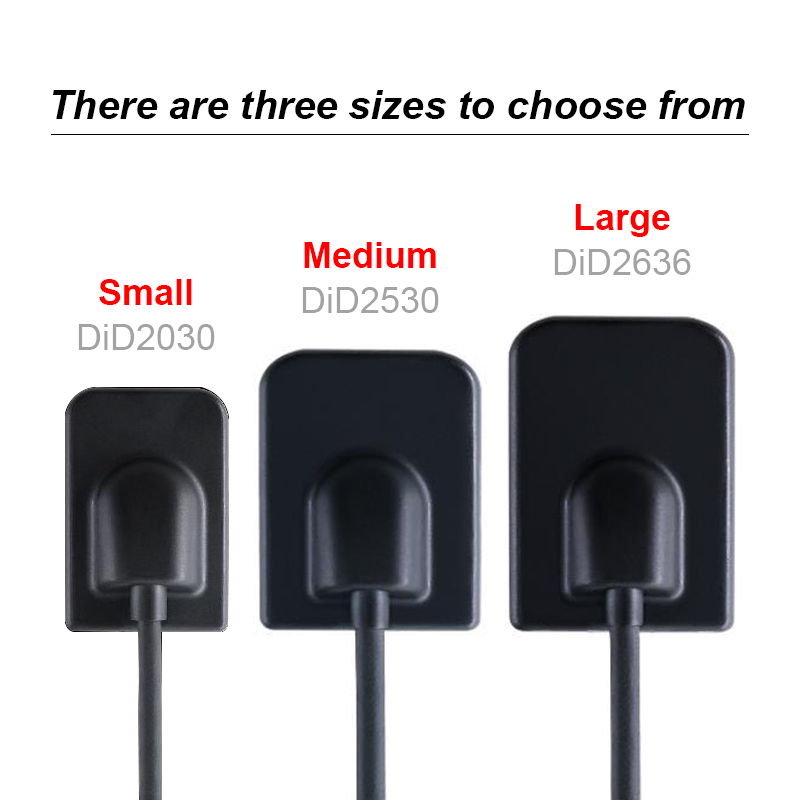

​​​Model:​​•DiD2030 | DiD2530 | DiD2636

​​Gray Scale Range:​​

•16,384 Levels (0–16383)

​​Power Supply:​​
•5V DC
​​Interface:​​

•USB 2.0
​​Power Consumption:​​

•DiD2030: <2W

•DiD2530/DID2636: <3W
​​Dimensions (L×W×H):​​

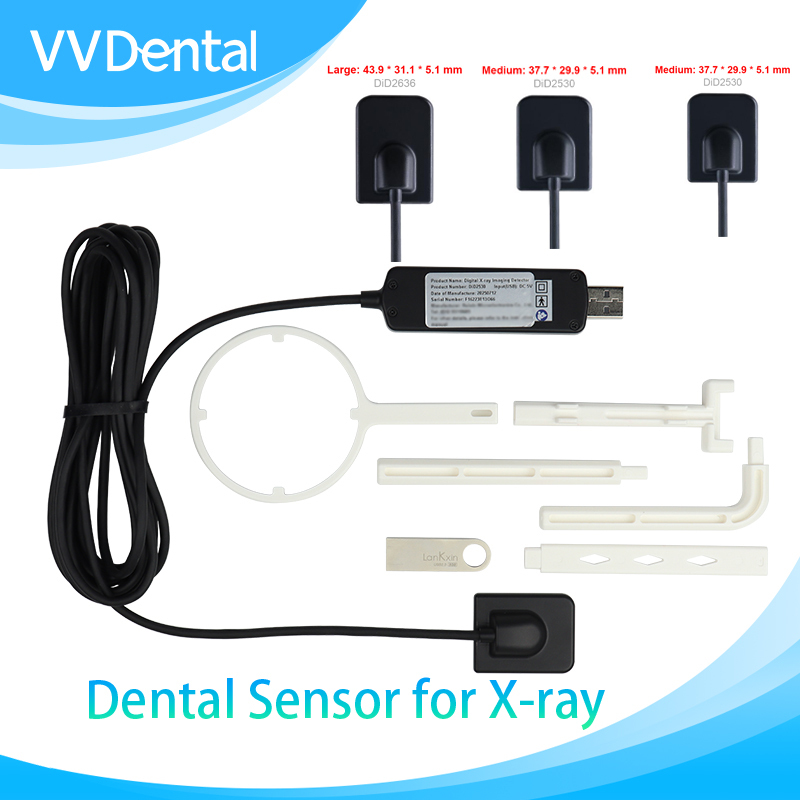

•​​Sensor Unit:​​

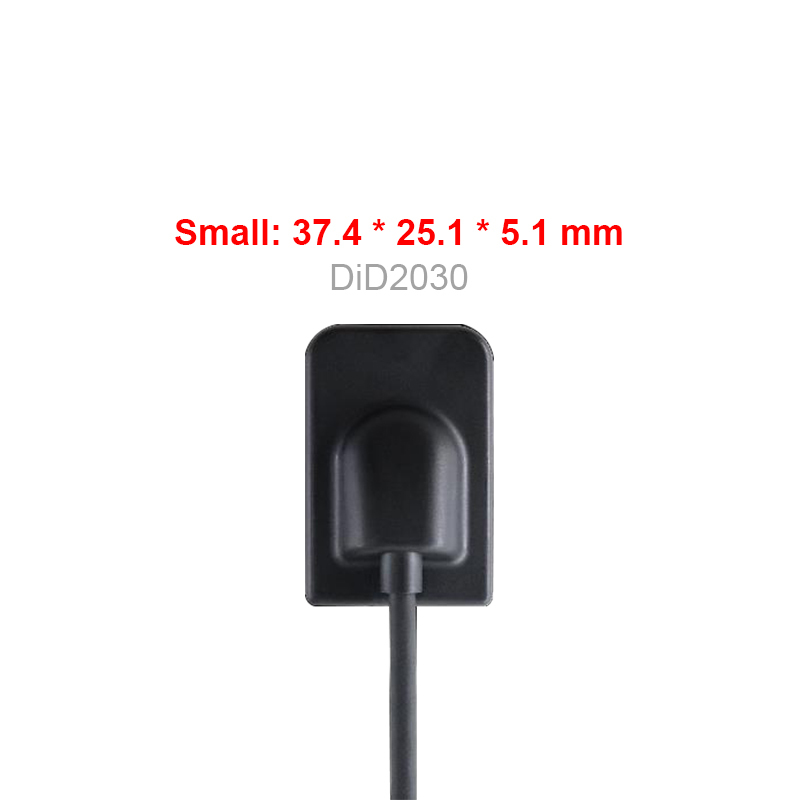

•DiD2030: 37.4mm × 25.1mm × 5.1mm

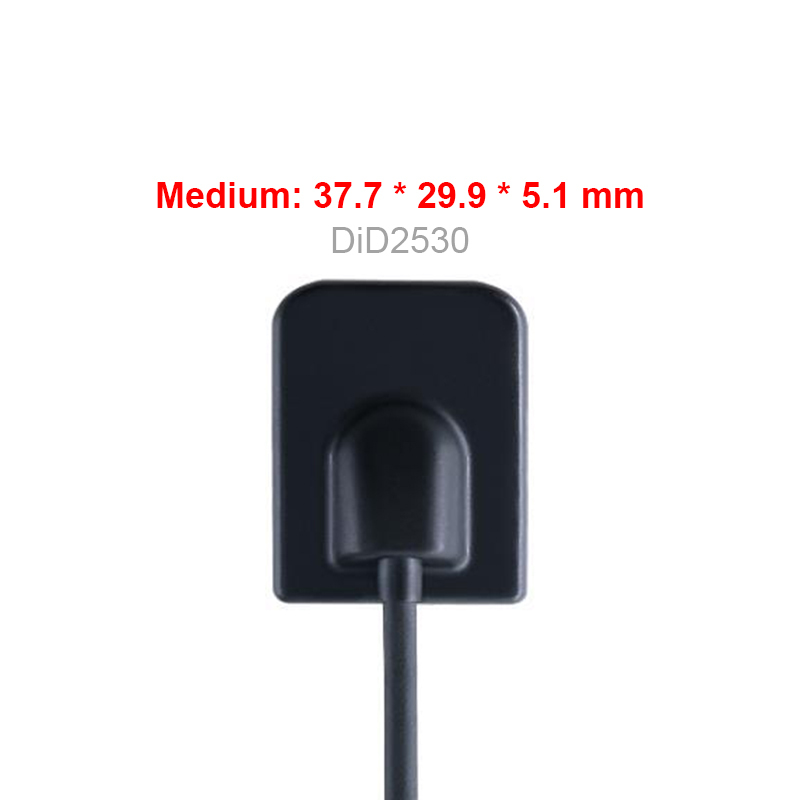

•DiD2530: 37.7mm × 29.9mm × 5.1mm

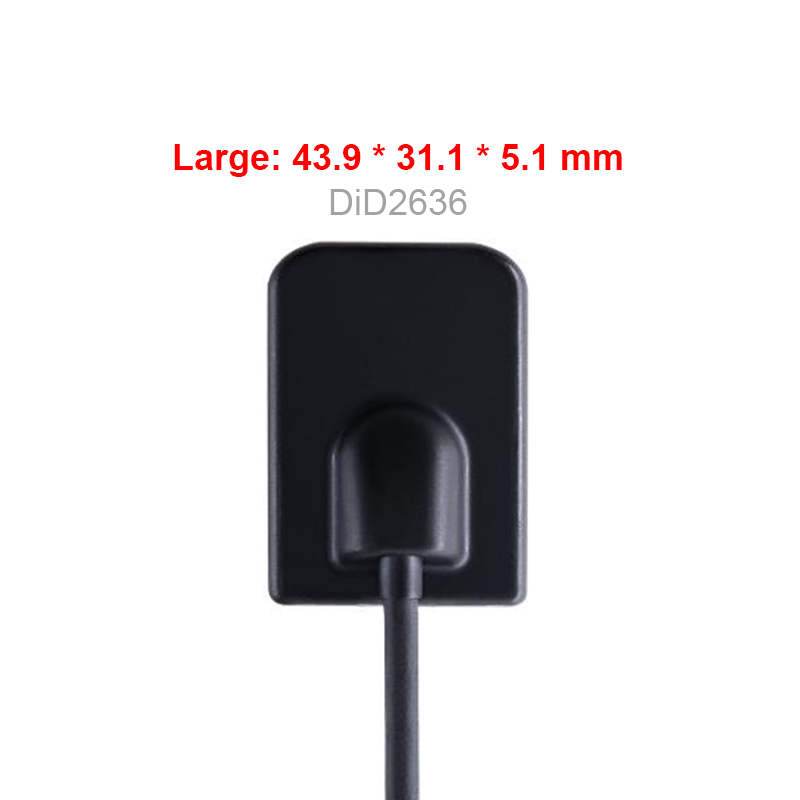

•DiD2636: 43.9mm × 31.1mm × 5.1mm

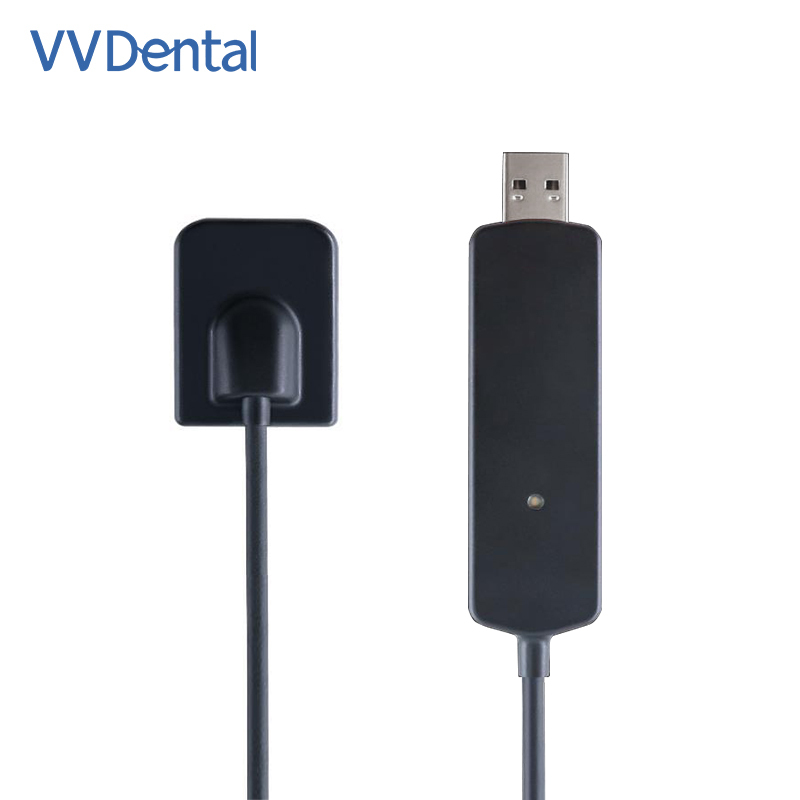

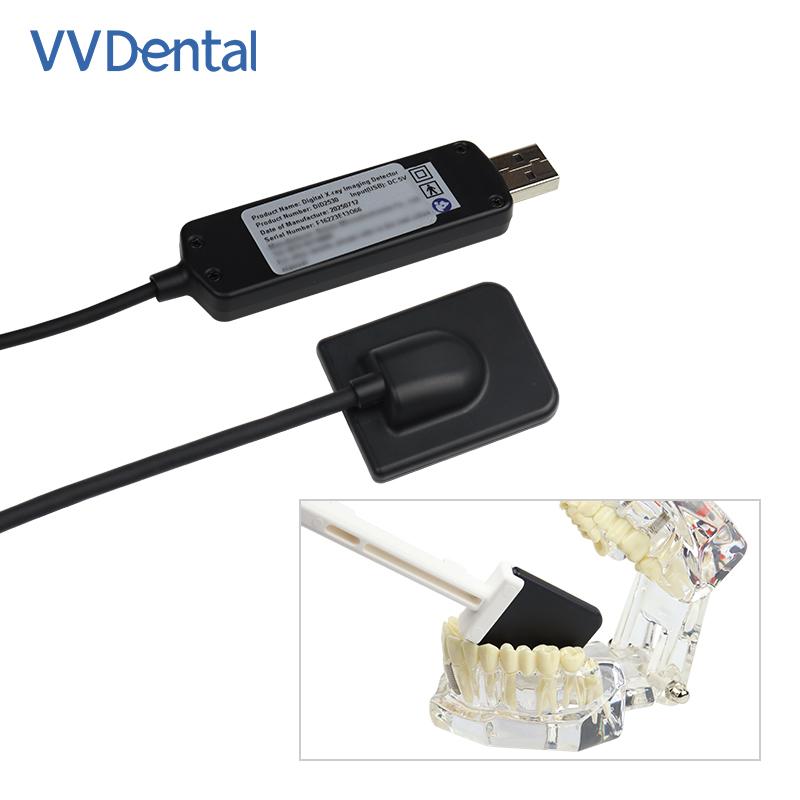

•​​USB Control Box:​​ 96.3mm × 24mm × 10mm

​​Cable Length:​​
•2.85m ±0.1m

1. Customer-Provided Equipment

   • All peripherals (monitors, printers, etc.) must be supplied by the customer

2. Safety Compliance

   • Non-compliant computers (e.g. assembled machines) violating GB4943 safety standards are prohibited

   • Security risks include: electric shock, fire hazard, and data integrity issues
